What Is a Wall Scanner and Why You Need One

A wall scanner detector is a handheld device that identifies hidden objects behind plasterboard, brick, and concrete — things like live electrical cables, copper pipes, metal studs, and wood studs. Simple as that. You point it at the wall, it tells you what's lurking behind the surface before you drill.

I work in a care home off Madrid Street in Belfast, and we've had maintenance contractors hit water pipes twice in the past three years. Both times, it flooded a resident's room. Both times, it could've been avoided with a decent bosch wall scanner or similar wall detector scanner. That's what got me interested in these tools in the first place.

The technology uses a combination of radar, capacitive sensing, and electromagnetic detection. Higher-end models like the Bosch Professional Wall Scanner GMS 120-27 use multiple sensor types simultaneously, giving you detection depths up to 120mm in concrete for metal objects. Budget models? You're looking at maybe 38mm for wood studs. Big difference.

So who actually needs one? Anyone drilling into walls, basically. DIYers hanging shelves, electricians doing first-fix wiring, plumbers routing new pipework, or — like us — care home staff trying to mount grab rails safely without hitting anything dangerous.

Bosch Wall Scanner Range: Models Compared for 2026

Bosch dominates the wall scanner market in the UK, and honestly, there's a reason for that. Their detection accuracy is consistently rated highest in independent testing by Which? consumer reviews. But which model suits your needs?

Bosch Truvo Wall Scanner

The entry-level option. Detects live wires up to 50mm deep and metal up to 70mm. It's dead simple — green light means safe to drill, red means stop. No screen, no fuss. Retails around £45-55. Brilliant for occasional DIY use, but it won't find wood studs. That's its main limitation.

Bosch GMS 120-27 Professional

This is the one tradespeople reach for. The Bosch Professional Wall Scanner GMS 120-27 detects ferrous metal to 120mm, non-ferrous to 80mm, live cables to 50mm, and wood studs to 38mm. It's got a backlit display, centre-finding function, and costs roughly £90-110. Worth the extra spend? If you're using it daily, absolutely.

Bosch D-tect 200 C

The flagship. Radar-based detection through virtually any material — even finds plastic pipes, which most scanners can't manage. Detection depth hits 200mm for steel. Connects via Bluetooth to your phone. Price tag sits around £450-500. Overkill for most people, but for commercial fit-out work, it's spot on.

Electric Wire Detector in Walls: How the Technology Works

An electrical wire detector picks up the electromagnetic field generated by live mains cables. Most models detect cables carrying standard UK 230V AC current at depths between 38-50mm through plasterboard. That's the critical thing — the cable needs to be live (connected to the mains) for detection to work reliably.

Here's something that caught me out early on. Dead cables — ones that aren't connected or where the circuit breaker is off — won't show up on a standard wire detector in walls. You'd need a radar-based scanner for those. The Health & Safety Executive recommends using cable avoidance tools (CAT scanners) for any commercial work, but for domestic use, a good quality electrical wire wall detector covers most scenarios.

Detection Modes Explained

Most wall scanner tools offer three distinct modes:

• AC wire mode: Detects live electrical cables via electromagnetic field sensing. Range typically 38-50mm.
• Metal mode: Uses eddy current technology to find ferrous and non-ferrous metals — pipes, steel studs, rebar. Range 60-120mm depending on model.
• Stud mode: Capacitive sensing identifies density changes in the wall material. Finds wood studs, joists, and noggins at 19-38mm depth.

The electricity wire detector function is arguably the most important safety feature. I've seen people at work just drill wherever looks convenient. Don't be that person. A single hit on a live cable can kill — or at minimum, trip your RCD and give you a proper fright., a favourite among Britain’s tradespeople

Alternatives: Makita Wall Scanner, Woeaozy & Other Options

The bosch wall scanner range isn't your only choice. The market's grown significantly this spring, with several credible alternatives now available to UK buyers.

Makita Wall Scanner (DWD181)

Makita's offering runs on their 18V LXT battery platform — handy if you're already in their cordless ecosystem. Detection depth reaches 180mm for ferrous metal, 80mm for non-ferrous, and 50mm for live wires. It's a solid professional tool at around £180-220. My mate who does kitchen fitting swears by it because it shares batteries with his drill and impact driver.

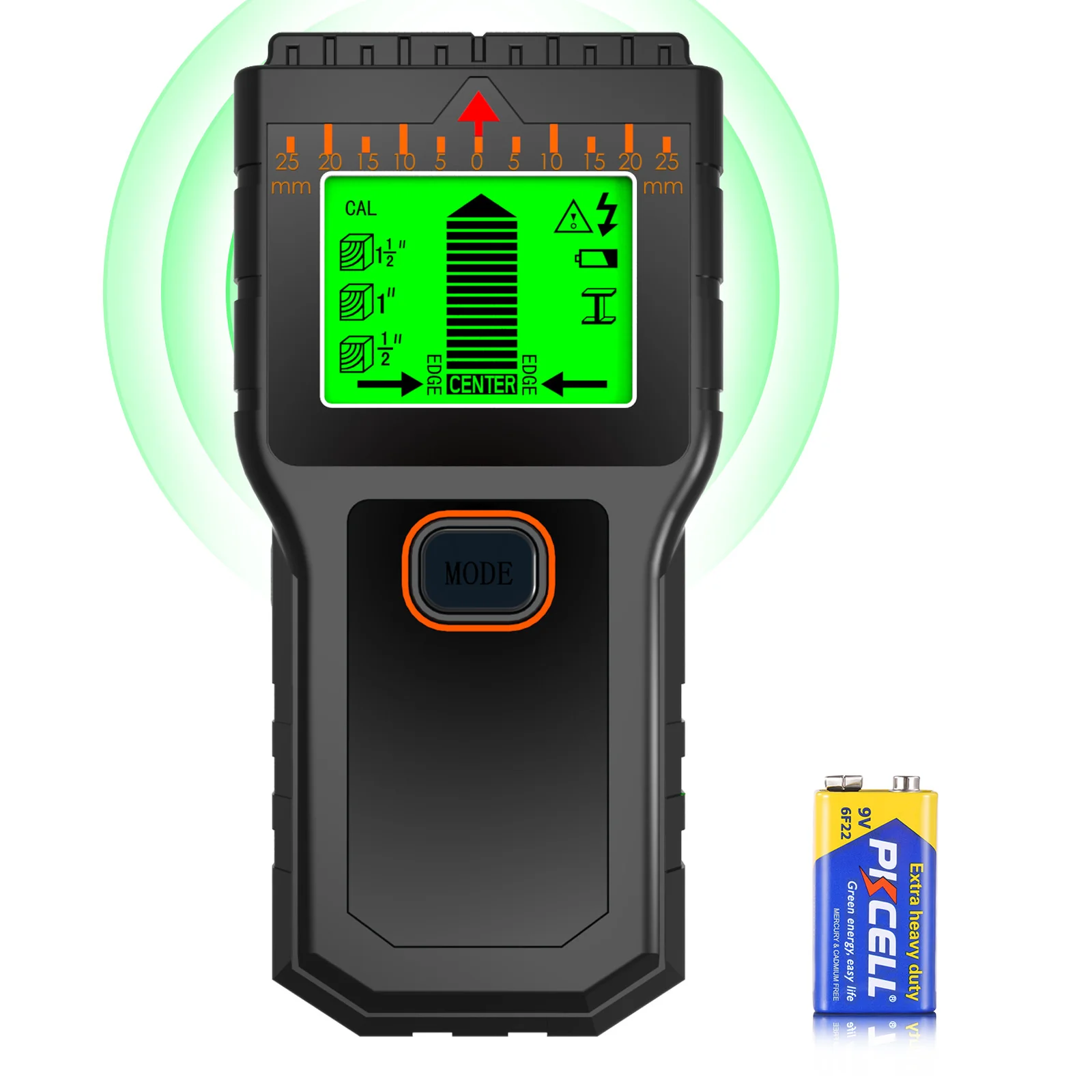

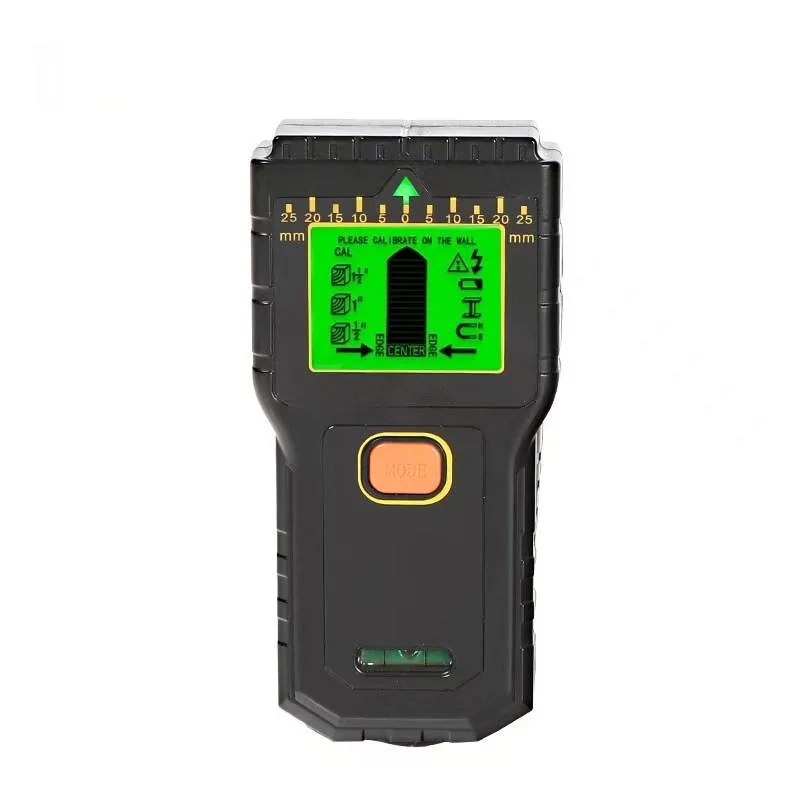

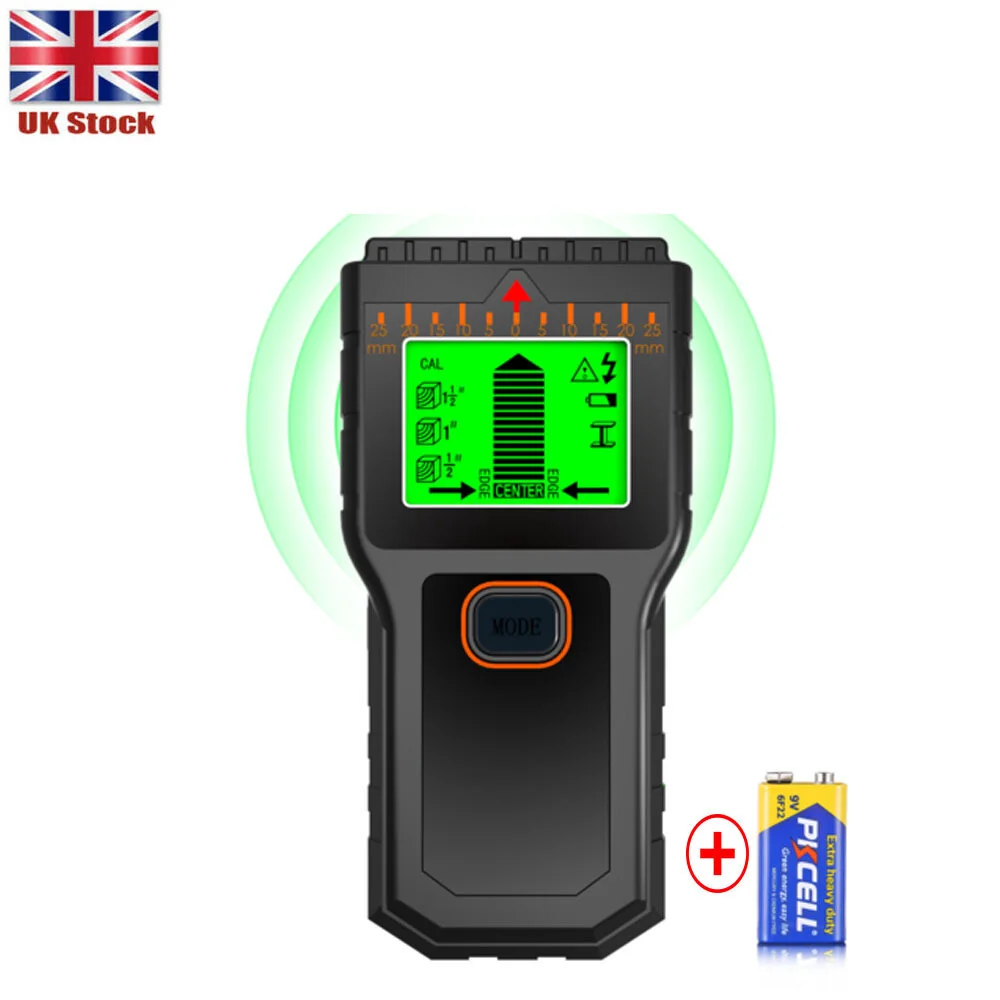

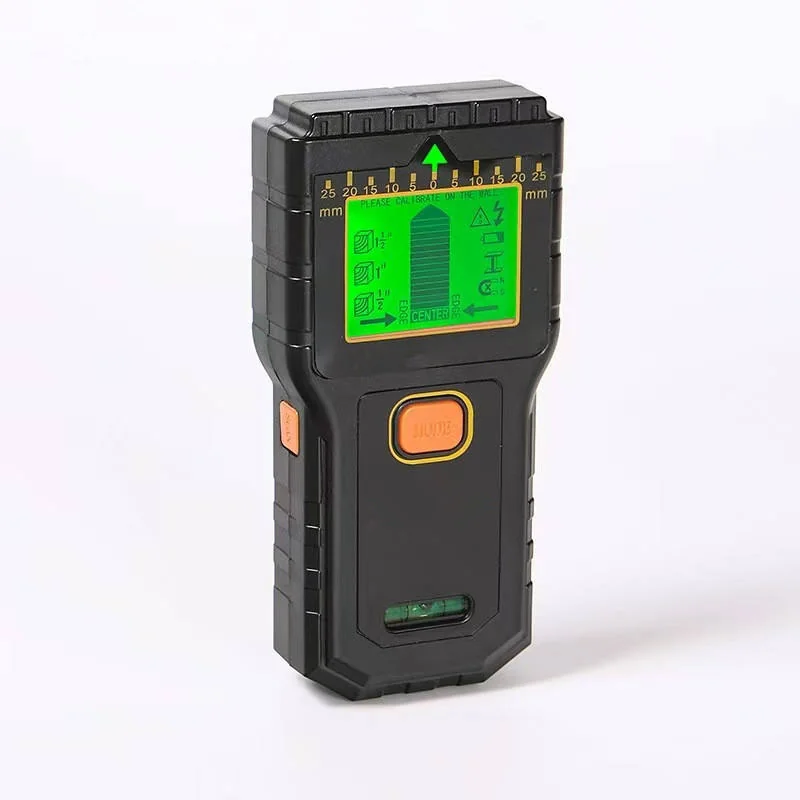

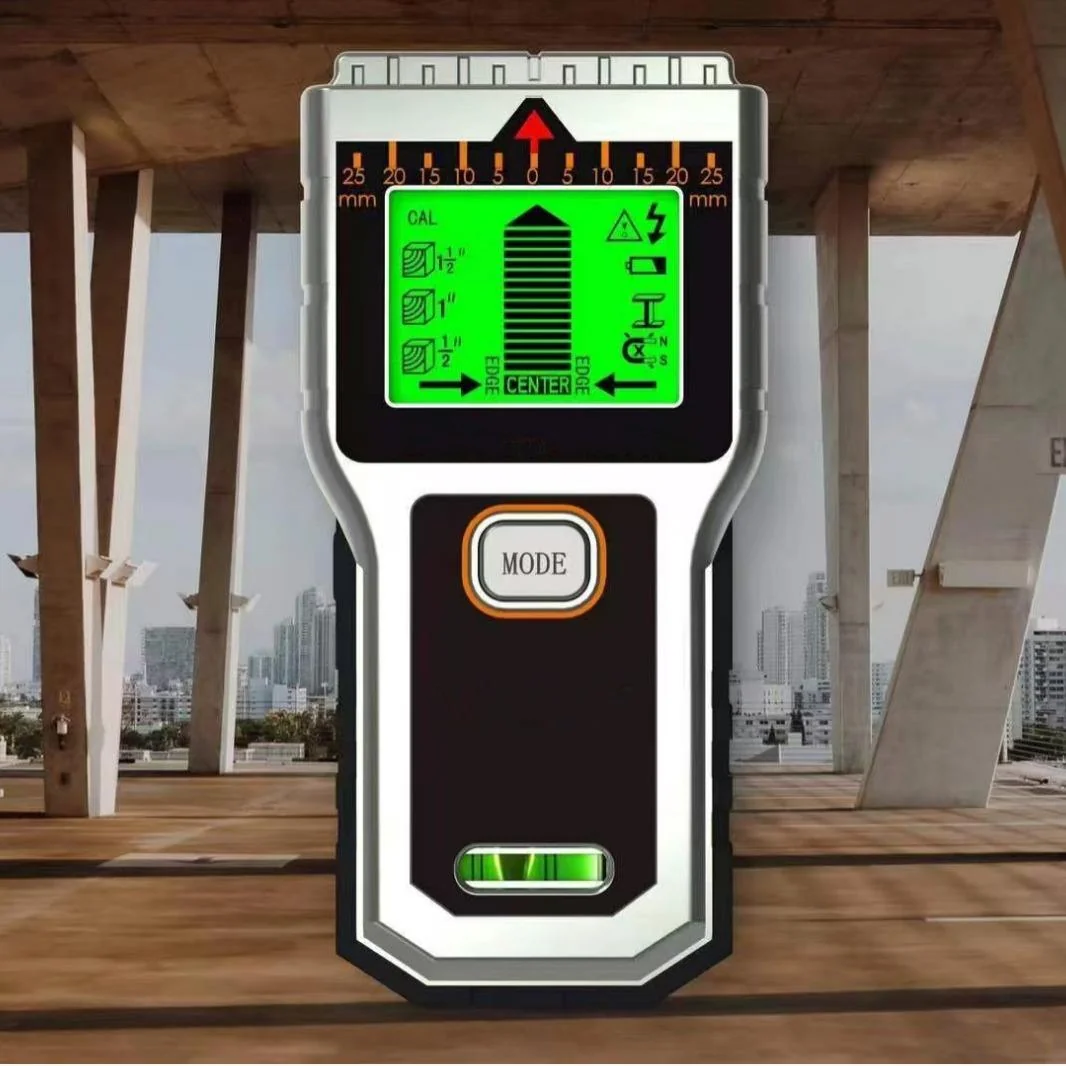

Woeaozy Wall Scanner — £32.51

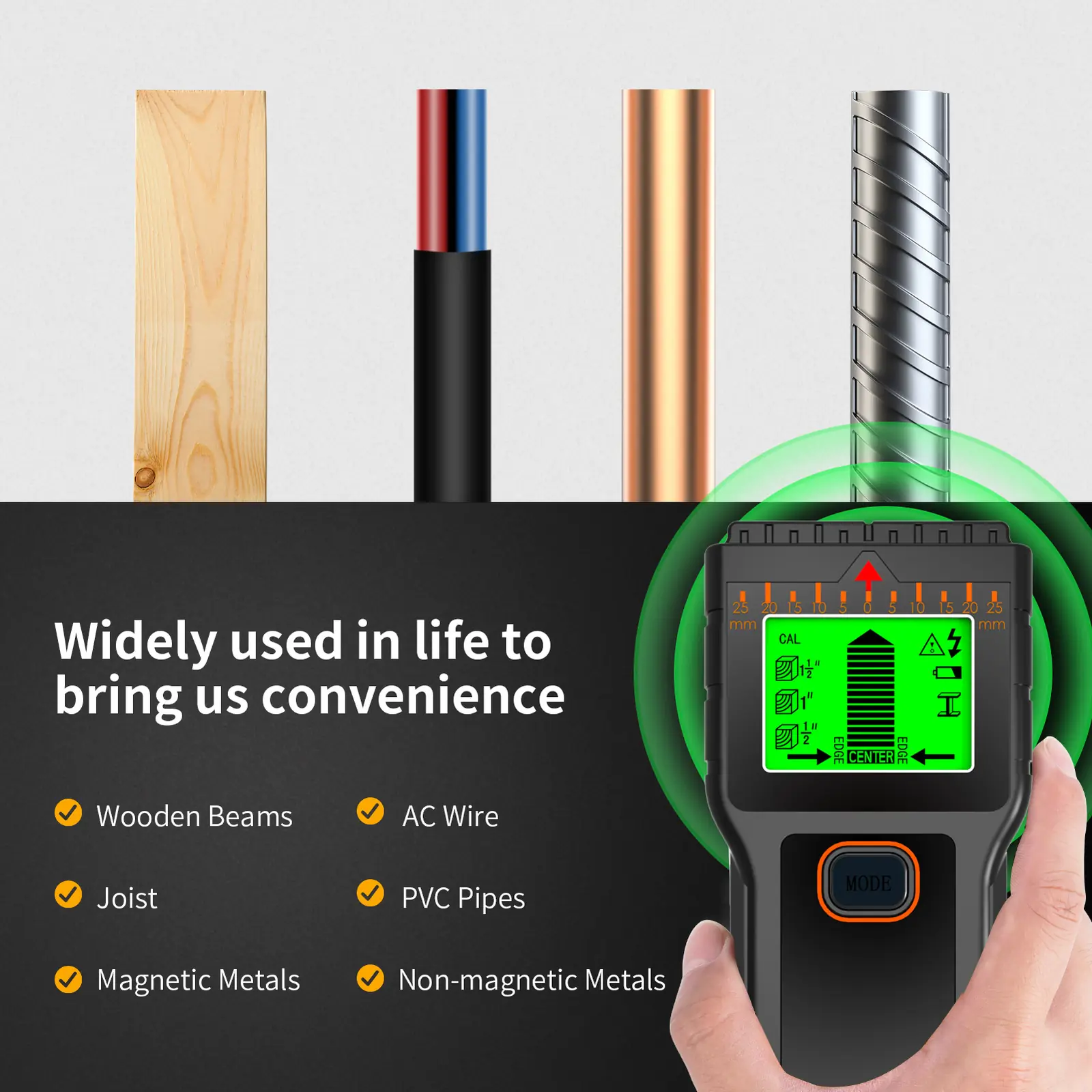

Right, here's the budget option that's been getting attention. The Woeaozy Wall Scanner comes in at just £32.51 and handles wire detection in walls, metal finding, and wood stud location. Precision-engineered in the UK, it offers 5-in-1 scanning modes with an LCD display showing signal strength.

I know what you're thinking — can a £28 scanner really compete? For basic domestic work it does a surprisingly decent job. I've used one at home for hanging pictures and mounting a TV bracket. It found the cables and studs accurately enough for my needs. For professional daily use, you'd still want the GMS 120-27. But for occasional DIY? Brilliant bang for your buck.

You can also check their dedicated stud finder range and their 7-in-1 stud finder if you want more detection modes.

Wire Detector in Walls Screwfix Options

Screwfix stocks several wire and pipe detector in walls options, primarily from Bosch and Stanley. The Stanley S160 (around £35) is popular but lacks wood stud detection. Their Bosch Truvo stock tends to sell out quickly — that tells you something about demand.

How to Use a Stud Finder Wall Scanner Properly

Even the best home stud finder won't help if you use it wrong. I've watched people wave these things around like a TV remote and then complain they don't work. There's a technique to it.

Step-by-Step Process

1. Calibrate first. Hold the scanner flat against the wall away from any known objects. Press the calibration button. Wait for the ready signal. Every. Single. Time.
2. Move slowly. Slide the scanner horizontally at roughly 5-10cm per second. Too fast and you'll miss narrow objects like cables.
3. Mark both edges. When the scanner signals a find, mark it. Then approach from the opposite direction to find the other edge. The centre point is where the object actually sits.
4. Scan in two directions. Horizontal pass first, then vertical. Cables can run at any angle, especially in older properties.
5. Check your battery. Low battery voltage causes false readings. Sounds obvious, but it catches people out constantly.

Common Mistakes with Wall Detector Scanners

Scanning over wallpaper with metallic patterns? That'll give false positives. Foil-backed plasterboard? Same problem. Wet walls after a leak? The moisture content throws off capacitive sensors completely. These aren't faults with the tool — it's understanding the limitations.

The best rated stud finder in the world still needs a competent operator. That said, modern scanners like the bosch wall scanner GMS 120 have gotten much better at filtering out interference compared to models from even five years ago.

UK Buying Guide: Choosing the Right Scanner for Walls in 2026

The scanner for walls market has shifted noticeably this year. Prices have come down on mid-range models while detection capabilities have improved across the board. Here's what actually matters when choosing.

Detection Depth vs. Accuracy

Don't just chase maximum depth figures. A scanner claiming 150mm detection might only achieve ±20mm positional accuracy at that depth. For drilling safety, you want ±5mm accuracy at working depth — typically 30-60mm in domestic walls. The Bosch GMS 120-27 achieves approximately ±5mm at 50mm depth, which is why professionals trust it.

Wall Types Matter

UK homes vary massively. Victorian terraces have solid brick with lime plaster — 15-25mm thick. 1960s builds often have lightweight block with gypsum skim. Modern builds use 12.5mm plasterboard on timber or metal studs. Your wood stud wall finder needs to handle whatever you've got., popular across England

If you're working in older properties (and in Belfast, that's most of them), you'll encounter lath and plaster, which confuses cheaper scanners. The wood stud locator function struggles because the laths themselves are wood. You need a model with adjustable sensitivity — the Woeaozy range and Bosch professional models both offer this.

What About the Best Stud Finder UK Buyers Should Consider?

For pure wood stud sensor capability, the market leaders in June 2026 are:

• Professional use: Bosch GMS 120-27 (£99.99) — best all-rounder
• Budget pick: Woeaozy Wall Scanner (£32.51) — remarkable value
• Premium: Bosch D-tect 200 C (£479.99) — when money isn't the issue
• Ecosystem play: Makita DWD181 (£199) — if you're already on 18V LXT

Products sold in the UK should comply with relevant safety standards. The British Standards Institution (BSI) oversees product certification, and reputable brands will carry appropriate CE/UKCA markings.

Key Takeaways

• The Bosch wall scanner GMS 120-27 remains the professional benchmark in 2026 — detecting metal at 120mm, wires at 50mm, and wood studs at 38mm for around £99.99.
• Budget doesn't mean useless: The Woeaozy Wall Scanner at £32.51 handles domestic wire detection and stud finding with genuine accuracy for occasional use.
• Always scan with circuits live — electrical wire detectors rely on electromagnetic fields from energised cables and won't find dead wires.
• Calibrate before every use and scan in both horizontal and vertical directions for complete coverage.
• Detection depth claims are maximums — real-world accuracy at depth matters more than headline figures. Look for ±5mm at working depth.
• UK wall types vary enormously — choose a scanner with adjustable sensitivity if you're working across different property ages and construction methods.
• For plastic pipe detection, only radar-based scanners work — standard electromagnetic models won't find them regardless of price point.
